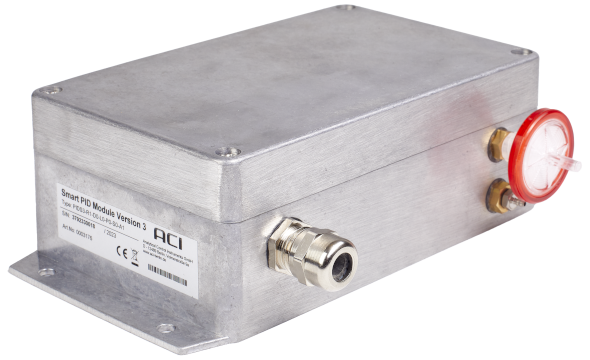

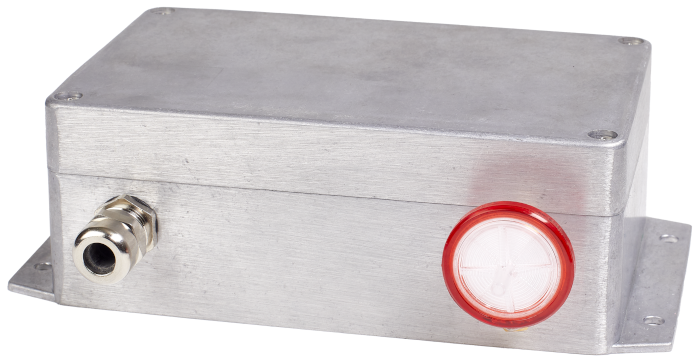

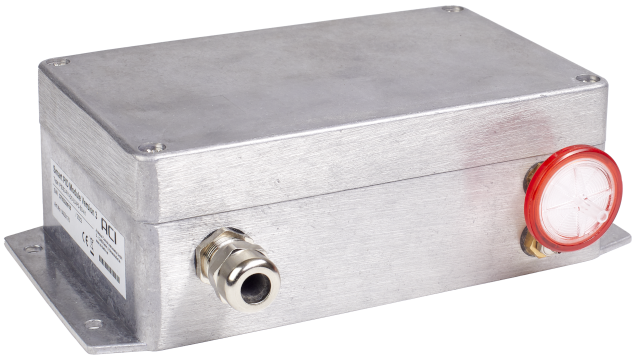

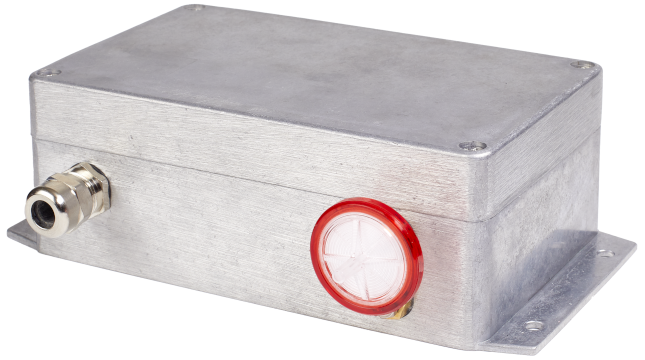

PIDS3 Smart Photoionization Modul Version 3

Intelligentes Photoionisationsmodul





Datenblatt
Benutzerhandbuch

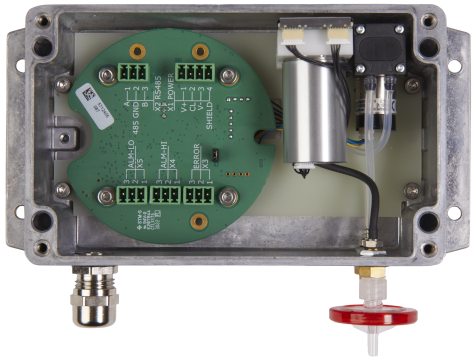

Das Photoionisationsdetektormodul PIM CPN ist ein OEM-Modul zur Detektion flüchtiger organischer Verbindungen mit einem Ionisationspotential < 10,6 eV in der Standardausführung (optional 10,0 eV und 11,8 eV erhältlich). Mit seiner Elektronik und dem Mikrocontroller sowie dem kombinierten Feuchte-/Temperatursensor bietet es eine flexible und einfach zu handhabende Anpassung an Ihr Messsystem. Das Modul verfügt über eine eingebaute Linearisierung und Temperatur-/Feuchtekompensation sowie eine digitale Schnittstelle. Die Messkammer ist mit einem barometrischen Sensor und einem Durchflusssensor für die spätere Kompensation und Gasflussüberwachung ausgestattet.

Jetzt anfragen

Produktspezifikationen



Schlagzeile
Extended measuring range

A new sensor unit allows an extended measuring range of up to 2 000 ppm (isobutene) with high resolution even at low concentrations. (20 ppm and 5000 ppm measurement range also available)



Schlagzeile High performance PID lamp

The ionization source is a high stable hollow cathode lamp with an energy of 10.6 eV. With its ceramic discharge channel, the stability is improved and a longer service life of up to 15 000 hours and more will achieved.

Schlagzeile
Wide power supply range

Since the power supply of the PID lamp is integrated, the unit works with a wide input range power supply.

Schlagzeile
Flexible connections

The galvanic isolated RS485 interface supports reading measurement,  diagnostic results, remote calibration and configuration. The RS485 interface allows additional flexibility to choose the right interface for industrial and laboratory applications. The optional analog 4  20 mA output represents the linearized and compensated concentration value in different scaling.



Schlagzeile
Temperature / humidity compensation

The integrated humidity / temperature sensor measures in addition to the sensor signal the physical environment data and compensates their influence on the measuring result.



Schlagzeile
Barometric pressure

One integrated barometric pressure sensor measures continuously at the gas inlet of the measurement chamber.

Schlagzeile
Signal processing

A microcontroller handles the measurement and control functions, performs all calculations and provides the result. There is no knowledge of the particular operation of the PID sensors required.

Schlagzeile
Gas flow monitoring

The integrated pressure sensors measures continuously the pressure drop over the measurement chamber do ensure proper flow. (a version with integrated pump is available)





Technische Daten



Detector principle                 VUV-Photoionization with 10.6 eV hollow cathode lamp with Ceramic Discharge Channel technology and integrated high voltage supply.
(optional 11.8 eV and 10.0 eV lamp available)
Detection ranges R0 – 0 … 2 000 ppm Isobutene * (R1 – 0 … 20 ppm and R2 – 0 … 5 000 ppm also available)
Lower detection lim R0 – typical 10 ppb *
R1 – typical 1 ppb *
R2 – typical 1 ppm
Signal resolution Dynamic up to 0.01 ppm
Response time  T90 < 10 s *
Signal integrity Up to 100 ppm typical > 98 % *
Up to 5 000 ppm typical > 95 % *
Influence of humidity Humidity and temperature compensation at 0 ... 60 °C and 0 … 90 % rH
residual effect less than < 10 %
Operating conditions -20 … +50 °C and 0 … 90 % rH, non-condensing (-10 … +50 °C with integrated pump)
Storage conditions -20 … +60 °C and 0 … 95 % rH, non-condensing
Gas flow Required 200 … 300 ml/min,

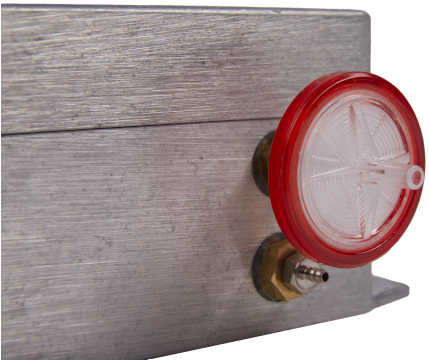

Sample inlet with dust and water protection filter
Optional with integrated pump available
Gas connection Viton tube 1/8” OD … 1/16” ID (recommended)
Dust and water protection filter required
PID lamp life time Min. 8 000 hours, typical more than 15 000 hours
Handling Device configuration via RS485 UART
Digital interface RS485 (UART or MODBUS) galvanic isolated
Analog interface Current loop, 4 … 20 mA (optional)
optional 3 SPDT 30 V / 2 A Relays (surge current)
Power supply 10.0 … 28.0 VDC, approx. 1.5 W at 24.0 V

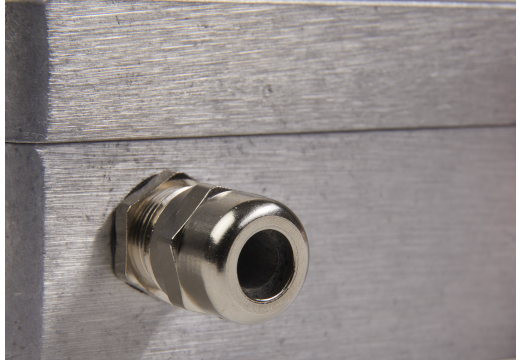

Cable gland Cable gland for cable diameter 5 mm … 9 mm
Screw connection inside
Conductor cross section solid max. 1.5 mm²
Conductor cross section stranded max. 1.5 mm²
Calibration  Two point calibratio
Ingress Protection IP65 enclosure only, IP53 in operation due to gas inlet requirement
Dimension, weight 191 mm x 133 mm x 60 mm (L x W x H), about 1000 g
Warranty 2 years, except for components in gas path and wearing parts
  * The indicated values were obtained under standardized conditions.
Test gas was isobutene in synthetic air.
